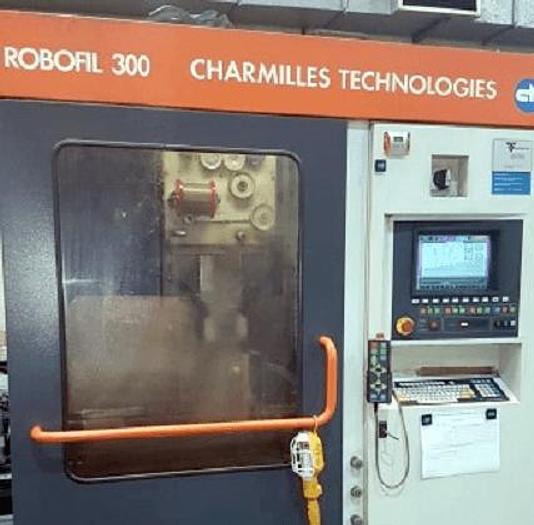

CHARMILLES ROBOFIL 300

Price

Contact us for price

Location

Greece

orCall +359 24917190

Specifications

Year1994
ConditionUsed
Stock Number13110
Machine Charmilles Robofil300
Machine conditionVery Good (8/10)
OriginSwitzerland
Machine dimensionsL x l x H 1800 x 1600 x 2230 mm
Machine weight(including CNC & tank) 2500 kg
Max. work piece weight1000 kg
Max. work piece dimensions850 x 500 x 400 mm
X Y -travel400 x 250 mm
UV -travel400 x 250 mm
Programmable Z travel0 to 400 mm
Collision protectionX Y Z U V
Taper angle+/- 30 degree
Table movement0 to 900 mm/min
Programmable wire feed rate0.2 to 15 m/min
Programmable wire tension3 to 30 N
Standard diamond wire guide0.25 mm
Automatic wire threadingnot available
Automatic wire re-treadingnot available
Max. threading heightnot available
Min. diameter of threading hole------not available
Sku1906

Description

Transverse rail 4 water filters Deionisation bottle Note : This machine is in a very good condition, it is service regularly with all the necessary consumables, has a remarkable accuracy and operates all its life under the protection of a voltage regulator and harmonics filter protection. The cutting technologies are update to the latest ones and operates with the today's wires with very fast cutting speeds. You can rely on this machine for many years.
