2001 CR ELECTRONICS LT 1001 / 15 S3

Price

Contact us for price

Location

Athens, Greece

orCall +359 24917190

Specifications

ManufacturerCR ELECTRONICS
ModelLT 1001 / 15 S3
Year2001
ConditionUsed
Serial NumberLT 010901
Stock Number13184
MAX WIDTH(m)1550 mm
max thickness3 mm
Max speed12 m/min

Description

Stock Number : 13184

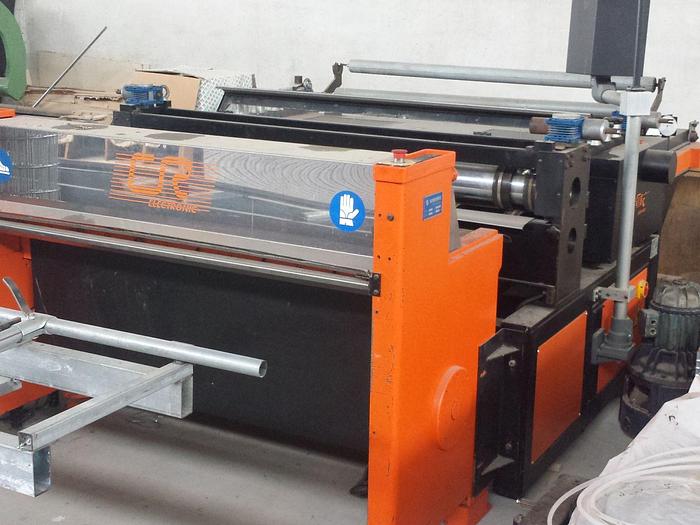

Machine :            STRAIGHTENING SLITTING & CUT TO LENGTH MACHINE

Manufacturer : CE Electronics

Y.O.M.:                 2001

Condition :          Used like new

Very compact and effective machine that performs the following operations

·         Decoiling of a sheet metal coil with thickness 1500 mm

·         Straightening (leveling) the Sheetmetal

·         Slitting

·         Cut to length (Shearing)


Specifications :


Decoiler :

Max coil weight :              5.000 Kgs

Min core dia:                      380 mm

Mac core dia :                    660 mm

Weight of the unit           200 Kgs



Leveler:

Max power :                       3,7 KW

Speed :                                12 m / min

Number of rolls :              7

Rolls dia :                             100 mm

Rotating rolls :                   9 (incl. feeding rolls)

Weight of the unit :         1.300 Kgs

Max material thickness at1.500 mm : 1,5 mm

Max material thickness at 1.250 mm : 2 mm



Slitter:

Number of slitting tools :              4

Adjusted slitting tools :                 YES

In and out of process                   YES

When in :                                     Start & Stop



Shear:

Power:                                                 3 KV

Thickness:                                           2 mm

Effective length of cut                    1550 mm

Weight of unit                                   1000 kgs
